Frame-Mounted · Hard Side · Sleeps 4
High Country
9.5'
Permanently chassis-mounted to the F450/F550 or RAM 4500/5500: hard-side throughout, Timberline hydronic heat, wet bath, 440W solar with the option to add more, and a rear tire carrier rated for tires up to 41".
Wet Bath
Starting at
$152,275
Dry Weight3,478 lbs
Mounting StyleChassis Mounted
Sleepsup to 4 people
FitsF450/F550 · RAM 4500/5500
Full Specifications
By the Numbers
Package Dry Weight
3,478 lbs
cabin + chassis, excl. batteries
External Length
174"
overall
External Width
81.25"
Height
86.5"
exterior hard-side
Interior Height
80"
standing height
Interior Length
171"
interior
Interior Width
78.25"
interior
Fresh Water
38 gal
with 12V pump & sight gauge
Gray Water
20 gal
Solar
440W
2×220W roof-mounted
Refrigerator
130L
Isotherm drawer-style fridge/freezer
Truck Type
F450/F550
or RAM 4500/5500
What's Included
Standard Features
OEV Gen 4 Composite hard-side walls and roof, rated up to R8, 1.5" (38.1mm)
1.5" (38.1mm) honeycomb polypropylene floor, rated R5 or better
Powder-coated aluminum extrusions and rub rail
Cabin fully integrated to chassis and fully isolated: not removable
6 dual-pane acrylic windows on passenger and driver sides in the dinette area
High Country graphics package
DOT LED lighting front, sides, and rear
Spec'd for Ford F450 or RAM 4500 4x4 (60" cab-to-axle), diesel or gas
Customize Your Build
Available Options
NS Queen bed: north/south sleeping with bedside wardrobes and additional lighting
NS Queen + Front Garage: north/south bed plus 24" front garage with locking cargo doors (requires 84" CA chassis)
Take the Next Step
Like What You See?
Gallery

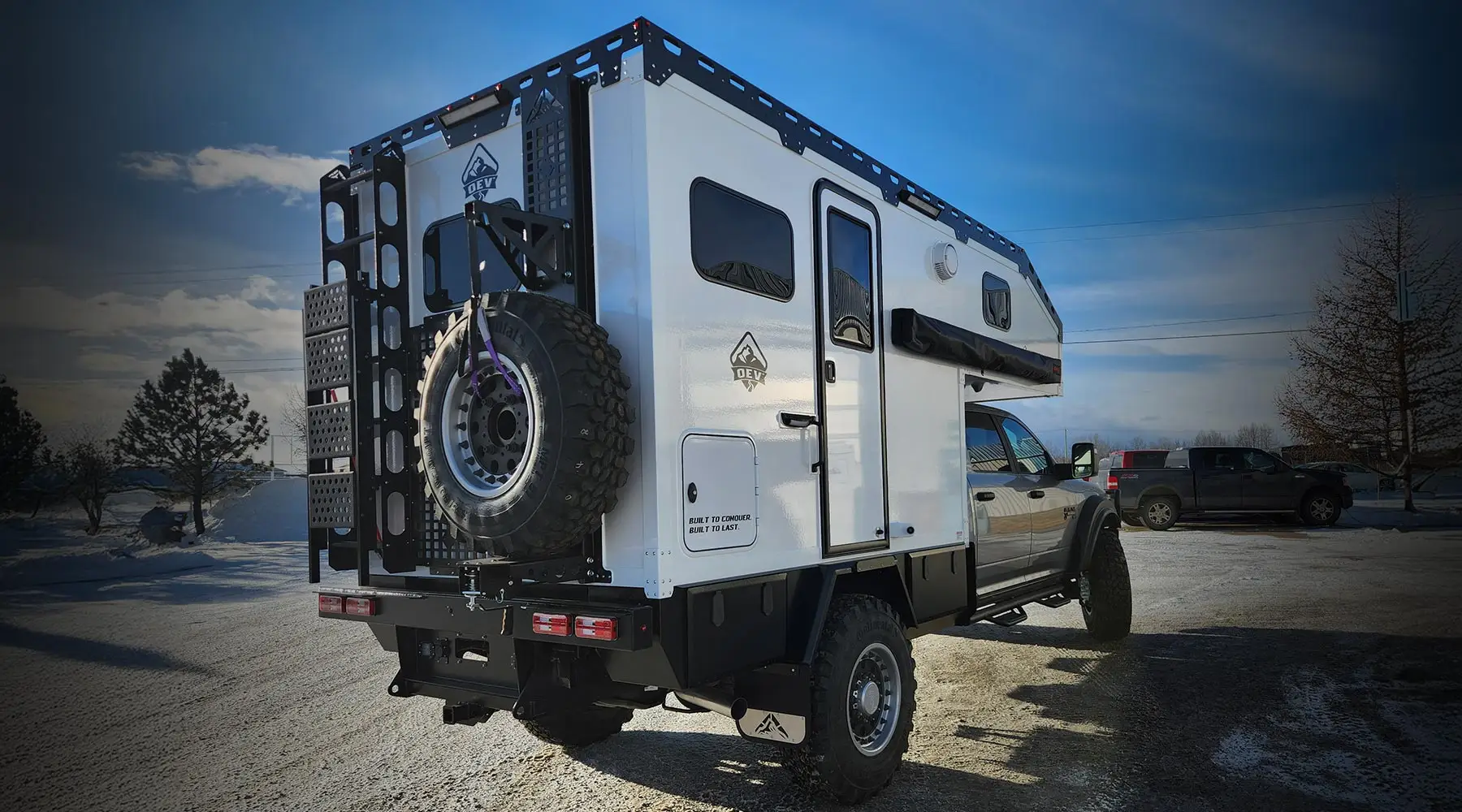

The Rig
Lightweight. Expedition Ready.
Built to Stay Under Your GVWR.
Built to Outlast Your Truck.
Step Inside
Virtual Tour
Look around the interior from every angle. Drag to pan, scroll to zoom, or use the buttons below to jump between viewpoints.
Loading panorama…
Drag to explore · Pinch to zoom
Layout

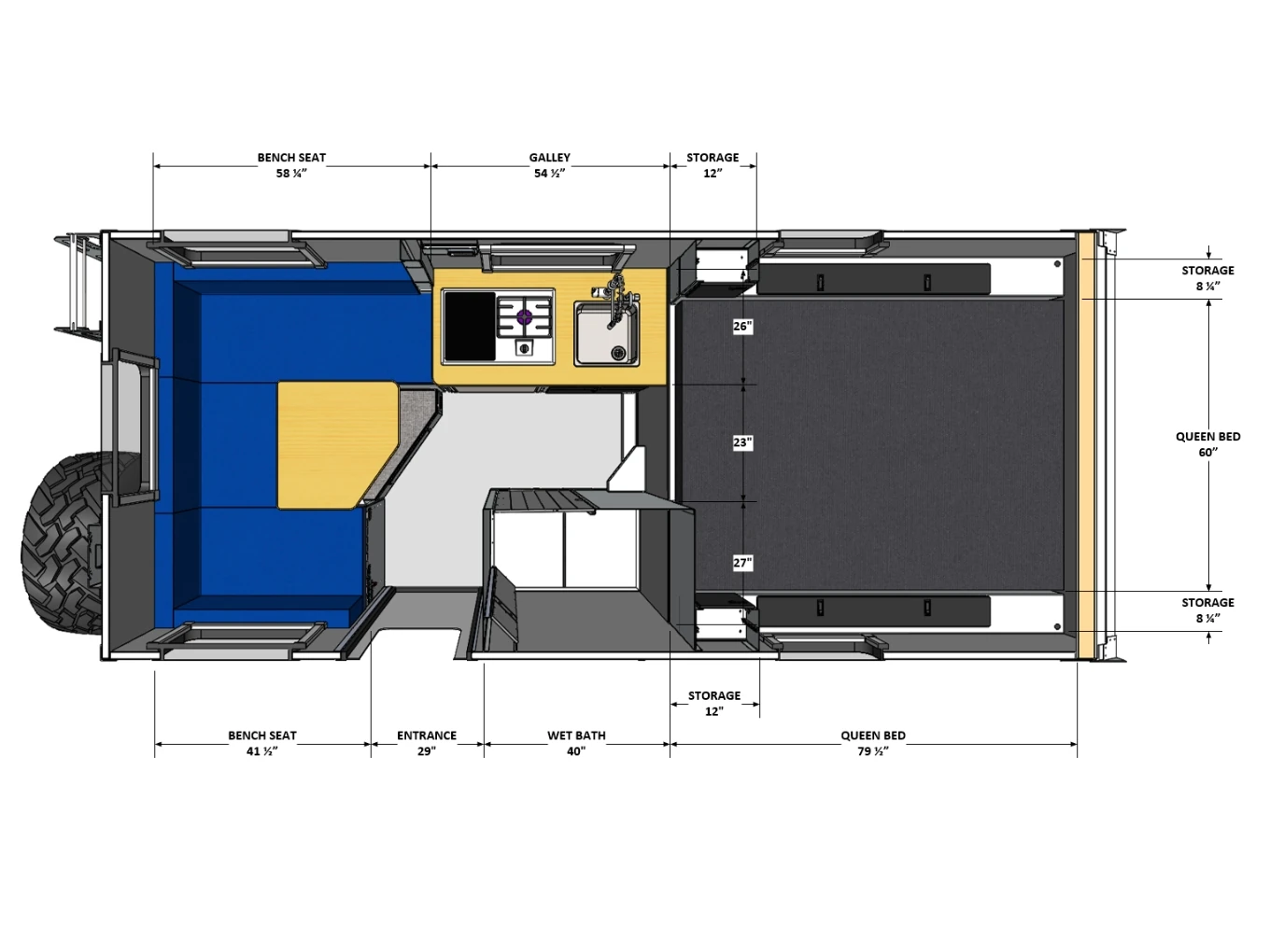

Floor Plan
See It in Action
Watch the Walkthrough
Video coming soon
Ready to Build Yours?
Let's Talk
High Country.
Every High Country Chassis Mount is configured to the buyer. Truck platform, battery system, cushion color, and options. Book a consultation and we'll spec out exactly what you need.
